Optipac MR32 Hybrid Air/Water oil or gas heat pump

Contents

An environmentally-friendly, high-efficiency solution
Biofuel compatible
What is biofuel F30 ?
An intelligent, connected heat pump
Simple, robust technology that reduces your energy bill
Equipement

Why choose a PERGE Optipac MR32 Hybrid gas heat pump : https://youtu.be/6-tRh3VqpFU

An environmentally-friendly, high-efficiency solution

With hybrid technology, combine energy savings, a reduced carbon footprint and security of 2 energies without sacrificing comfort.

The PERGE OptiPac MR32 Hybrid meets all your heating needs with ease, while optimizing energy resources.

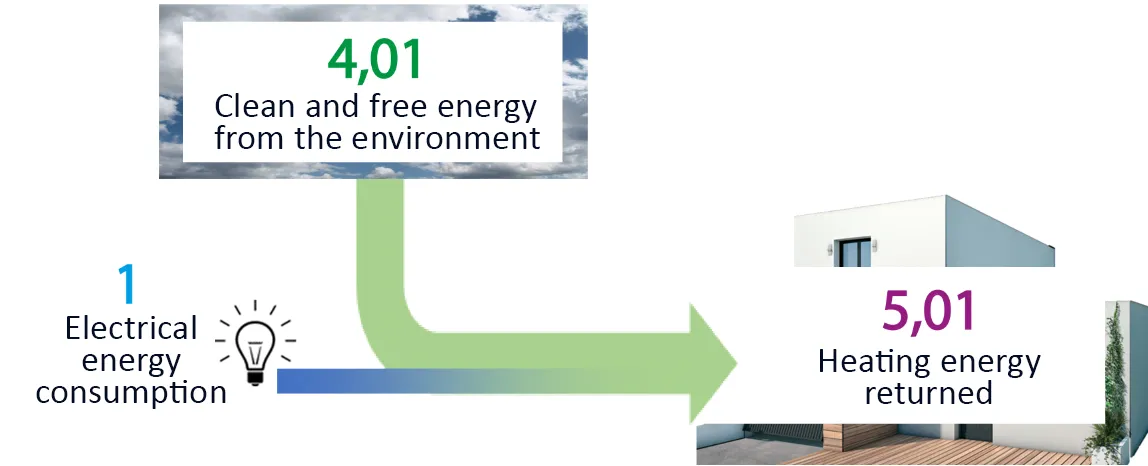

Year-round, even at slightly sub-zero temperatures, the heat pump supplies energy with unrivalled competitiveness. Under these conditions, its Coefficient of Performance (COP) is highly favorable.
Moreover, hybrid technology, by combining the heat pump with a boiler, makes it possible to use relatively low-power heat pumps (8, 10, 12 or 16 kW) that easily meet needs during this period, and that do not entail any major changes to the electricity subscription.

On extremely cold days, the Eco-Conception*-certified PERGE boiler delivers more economical energy. Its power meets heating needs at the best price without sacrificing comfort.

In between, the appliances complement each other, to satisfy your comfort at the lowest cost.

Combining the two energies allows you to keep the advantages of each and gives you the security of 2 complementary energies while keeping the tank already in place (in the case of Coup de Pouce).

 *European Eco-Conception Directive (High Efficiency & Low NOx Emissions)

Biofuel compatible

PERGE has always invested in innovative technologies, particularly in clean combustion techniques.

This pragmatic approach is based on a process of continuous progress, even minor advances, to improve everyday life for everyone. For example, PERGE OptiPac MR32 hybrid heat pumps are compatible with biofuel.

They can continue to operate with domestic heating oil you may have in your tank. Then, if you decide to switch to biofuel, they can run on the new biocombustible without changing your burner.

What is biofuel F30 ?

Biofioul F30 is a new kind of energy. It is a biofuel composed of 70% domestic heating oil to which is added 30% renewable energy, in the form of rapeseed methyl ester (RME).

 As a renewable energy source, RME can significantly reduce CO2 emissions, below the 300 g/kWh threshold that will be the maximum permitted from July 1, 2022.

An intelligent, connected heat pump

Secure connection via Bluetooth or Internet

Communication with the heat pump is via your smartphone, using the app available for Android or IoS. You can connect locally via Bluetooth or remotely via the Internet.

Data exchanges are encrypted for greater security.

Finally, the final word remains with the user, who freely chooses at any time to allow the professional remote access. This access can be :
- granted on a permanent basis, so that the user can monitor his or her installation with complete peace of mind
- limited to occasional interventions by the professional.

RC7, Class VII control

The RC7 control system fitted to OptiPac MR32 hybrid heat pumps is a Class VII control system, acting on the heating circuit temperature simultaneously by :
- modulating it according to outdoor climatic conditions ;
- by adapting and correcting it according to room requirements.

The temperature sensors are easy to install and transmit information either by wire or by radio.

You can control up to 3 heating circuits or 2 heating circuits + domestic hot water production.

There are 4 operating modes :
- Winter (heating + DHW)
- Summer (hot water only)
- Absence (heating at a programmed frost-free temperature)
- Standby (no heating or hot water)

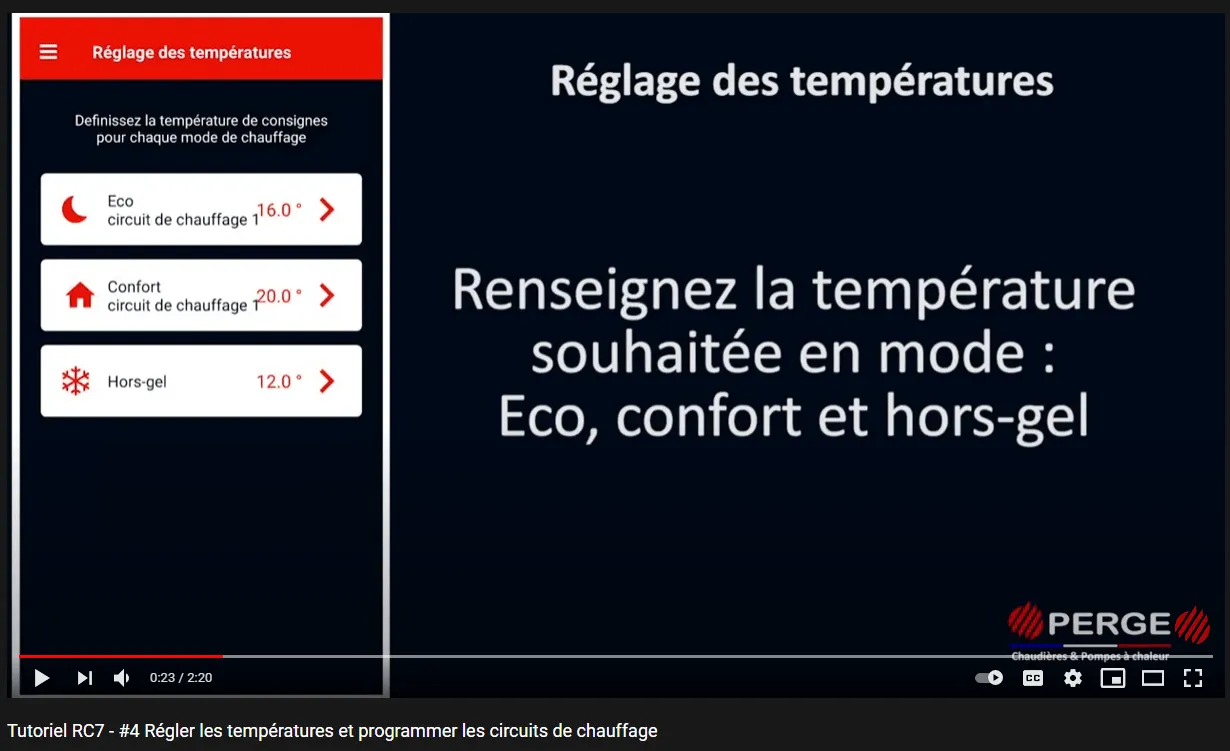

Watch our video tutorials on the MyPerge application, which lets you control your boiler with your smartphone :

Installing MyPerge : https://youtu.be/Aq0sA-a4n7I

Boiler connection : https://youtu.be/fq8r0rGAhF8

Modify your heating system : https://youtu.be/tPPqoTLddlo

Programming heating circuits : https://youtu.be/DLl7249WfQ8

Simple, robust technology that reduces your energy bill

Designed for durability and easy maintenance

Boiler body warranty : 10 years


The warranty on the boiler body is extended from 3 to 10 years if you take out an annual maintenance contract with a professional, from the moment the boiler is commissioned and without interruption for 10 years.

Easy installation, with the option of supplying two circuits at different temperatures directly from the PERGE OptiPac MR32 Hybrid.

PERGE Optipac MR32 hybrid heat pumps can easily supply 2 heating circuits at different temperatures (e.g. underfloor heating + radiator circuit) directly from the boiler, without the need for additional hydraulic accessories.
This simplifies hydraulic installation and reduces installation times.

Equipement

Hybrid module comprising :

- 50-liter internal hydraulic module and 50-liter boiler mixing chamber for a total buffer volume of 100 liters.
- Transfer pump between hydraulic module and mixing chamber
- Boiler body without mixing valve, allowing operation without return temperature limitation, without risk of dew point inside the boiler body.
- Oil or gas burner
- Circulator circuit n°1 factory fitted
- Control and command panel
- Intelligent, connected RC7 controller. Modulation of power according to outdoor temperature, adaptation and correction according to room requirements, local control via Bluetooth or remote control via Internet.
- Reinforced insulation casing
- Outdoor unit
